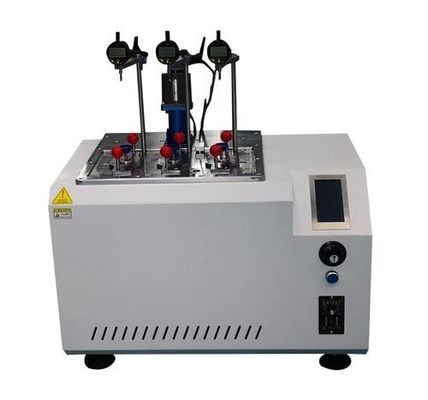

DX8534 Thermal Deformation and Vicat Softening Point Temperature Tester (Micro Control)
বিবরণ
টাইপ:
টেস্টিং মেশিন
নির্ভুলতা:
1
কাস্টমাইজড সমর্থন:
ওএম, ওডিএম, ওবিএম, সফটওয়্যার পুনর্নবীকরণ
শক্তি:
1
সুরক্ষা শ্রেণি:
আইপি 66
ভোল্টেজ:
220 ভি
ওয়ারেন্টি:
1 বছর
পরীক্ষা পরিসীমা::
ঘরের তাপমাত্রা ~300 ℃
নমুনা রাক সংখ্যা:
2,3, এবং 6;
হিটার শক্তি:
4KW;
ভিকট ঝামেলা:
1 মিমি।
বিকৃতি সমাধান ত্রুটি:
0.005 মিমি
উত্তাপের হার:
A=5℃/6min B=12℃/6min;
সর্বোচ্চ তাপমাত্রা পরিমাপ ত্রুটি::
± 0.5 ℃ ℃
সর্বোচ্চ তাপমাত্রা নিয়ন্ত্রণ ত্রুটি:
± 12 ℃/6 মিনিট (গরম বিকৃতি পরীক্ষা)
গরম করার মাধ্যম: সিলিকন তেল:
200 মিলিমিটারের নিচে, ফ্ল্যাশ পয়েন্ট 300 ℃ উপরে)
বিশেষভাবে তুলে ধরা:
micro control thermal deformation tester
,
vicat softening point temperature tester
,
lab testing machine with micro control
Applicable scope:
Mainly used for the determination of thermal deformation and Vicat softening point temperature of polymer materials (such as plastics, rubber, nylon, electrical insulation materials, etc.). Applicable to universities and colleges, research institutions, and product quality supervision and inspection units.
Compliant with standards:
Complies with the requirements of GB/T 8802-2001, ISO 2570 rigid polyethylene (PVC), GB/T 1633, GB/T 1634, ISO 75-1987 (E), ISO 306-1987 (E) and other standards.
Compliant with standards: Determination of Vicat Softening Temperature (VST)
GB/T 1634.1-2004 (idt ISO75-2:2003) Plastics Determination of Load Deformation Temperature (General Test Method)
GB/T 1634.2-2004 Plastics Determination of Load Deformation Temperature (Plastics, Hard Rubber, and Long Fiber Reinforced Composite Materials)
GB/T 1634.3-2004 Plastics Determination of Load Deformation Temperature (High Strength Thermosetting Laminated Materials
GB/T 8802-2001 (eqv ISO 2507:1995) Thermoplastic pipes and fittings - Determination of Vicat softening temperature
Main performance indicators:
Test range: room temperature~300 ℃;
Number of sample racks: 2, 3, and 6;
Heater power: 4K
Vicat Disturbance: 1mm.
Deformation resolution error: 0.005mm
Heating rate: A=5℃/6min B=12℃/6min;
Maximum temperature measurement error: ± 0.5 ℃
Maximum temperature control error: ± 12 ℃/6 minutes (hot deformation test) ± 5 ℃/6 minutes (Vicat test)
Weight of weights(i.e. load rod, standard indenter, Sensor probe, tray, screw): 68g±1g
Cooling method: natural cooling or water cooling (C-type machine)
External dimensions: 520×four hundred and twenty×1100mm;
Main power supply: 220V+10%, 15A, 50HZ;
A set of experimental application software for the Chinese version of the operating system of the thermal deformation and Vicat softening point temperature tester
